GD-B6201G board to board connector 6.2mm spacingSpecifications Electric pole: 2P Contact resistance: s 30m Ω Insulation resistance:>1000M Ω Rated voltage: 400V AC DC Rated current: 2.0A AC DC Voltage resistance: 1800V AC/mi……Detailed >>

GD-B4001P R board to board connector with a spacing of 4.0mmSpecifications Electric pole: 2P Contact resistance: s 30m Ω Insulation resistance:>1000MQ Rated voltage: 400V AC DC Rated current: 1.0A AC DC Voltage resistance: 1800V AC/min……Detailed >>

GGD-B3701P R board to board connector 3.7mm spacingSpecifications Electric pole: 2P Contact resistance:<30m Ω Insulation resistance:>1000MQ Rated voltage: 200V AC DC Rated current: 1.0A AC DC Voltage resistance: 1000V AC/mi……Detailed >>

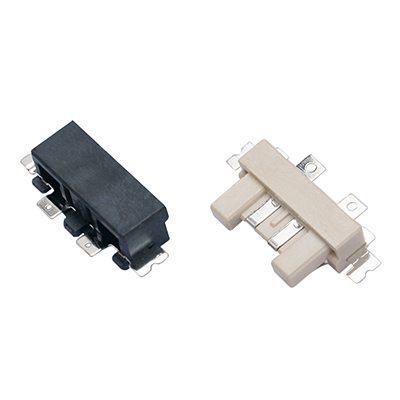

GD-B3002G M board to board connector with a spacing of 3.0mmSpecifications Electric pole: 2P Contact resistance:<30m Ω Insulation resistance:>1000MQ Rated voltage: 200V AC DC Rated current: 1.0A AC DC Voltage resistance: 1000V AC/mi……Detailed >>

GD-B3001P R board to board connector with a spacing of 3.0mmSpecifications Electric pole: 2P Contact resistance: s 20m Ω Insulation resistance:>1000MQ Rated voltage: 150V AC DC Rated current: 1.0A AC DC Voltage resistance: 1000V AC/min ……Detailed >>

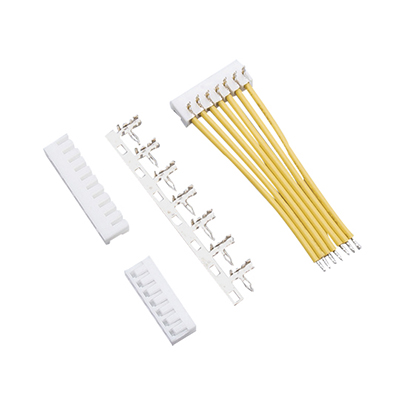

GD-B2502 board to board connectors with a spacing of 2.5mmSeries: B2502 Spacing: 2.5mm Hole position: (02~16) Temperature range: -25 ℃~+105 ℃ Rated voltage: 250V AC DC Rated current: 3.0A AC DCDetailed >>

GD-B2501 board to board connector with a spacing of 2.5mmBoard to board parameters Spacing: 2.5 millimeters Electrode: 2 to 16P Contact resistance: ≤ 20mQ Insulation resistance: ≥ 1000MQ Rated voltage: 250V AC DC Rated current: 3.0AAC DC ……Detailed >>

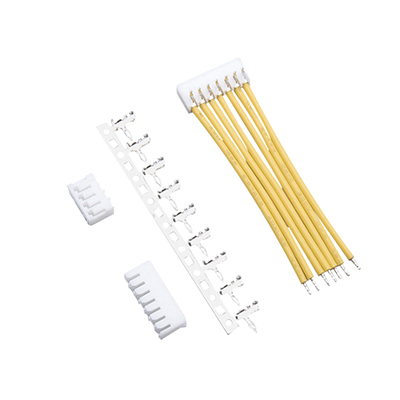

GD-B2002 board to board connectors with a spacing of 2.0mmSeries: B2002 Spacing: 2.0mm Hole position: (02~14) Temperature range: -25 ℃~+85 ℃ Rated voltage: 250V AC DC Rated current: 2.0A AC DCDetailed >>

GD-B1504P R board to board connector 1.5mm spacing plug type TV backlight connectorSpecifications Electric pole: 3P Contact resistance:<20m Ω Insulation resistance:>1000MQ Rated voltage: 150V AC DC Rated current: 1.0A AC DC Voltage resistance: 1000V AC/mi……Detailed >>

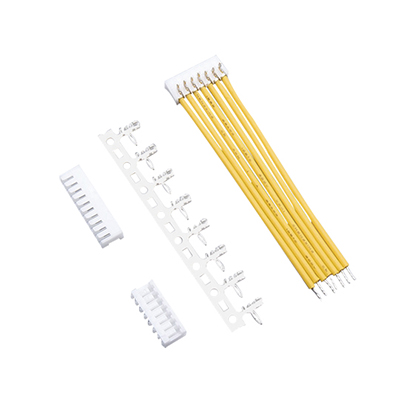

GD-B1502 board to board connector with a spacing of 1.5mmBoard to board connector specifications: Contact resistance: ≤ 20m Ω Insulation resistance: ≥ 500M Ω Rated voltage: 50V AC DC Rated current: 0.7A AC DC Voltage resistance: 500V AC/m……Detailed >>

GD-B1501 board to board connectors with a spacing of 1.5mmBoard to board connector series: B1501 Spacing: 1.5mm Hole position: (02~20) Temperature range: -25 ℃~+85 ℃ Rated voltage: 250V AC DC Rated current: 1.0A AC DCDetailed >>
